Description

Our company offers an industrial robot manipulator specially designed to capture an object from a conveyor line and lay it on a pallet in a mass production environment. Pallet feeding and pick-up is carried out manually. There is a function for laying interlayer cardboard.



One of the main advantages of our robot manipulator is the use of precision linear actuators, which allow you to move the pneumatic gripper according to a predetermined algorithm. This ensures high accuracy and speed of work, which in turn increases labor productivity up to 2x.



The robot performs repetitive tasks with the same accuracy and speed. The use of our robot manipulator will lead to an increase in the rhythm and flexibility of production, will free up qualified personnel to perform other tasks, and create a more orderly and efficient work process.



As a result, an industrial robot manipulator for automation of conveyor production is an effective and profitable solution to increase productivity and optimize the production process.

Advantages

+ Cycle time is 6 seconds

+ 180 degree rotation of the workpiece

+ Quick changeover to another type of box

+ Quick changeover to another type of pallet

+ The operator is engaged in other, more important tasks

+ Payback period of 6 months

+ Service life of 5 years

+ 2 year warranty

+ Quick replacement of a faulty mechanism due to the modular construction of the structure

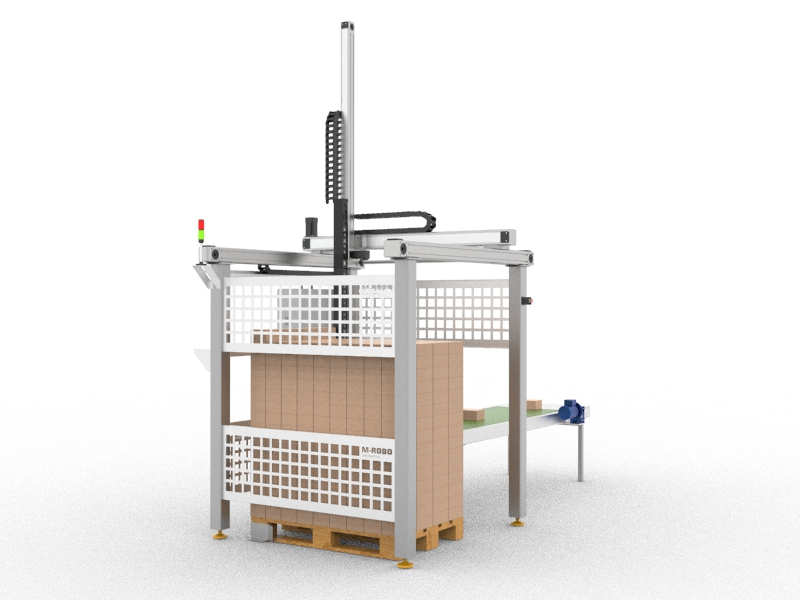

RC-5 Robotic Arm

Technical specifications

  •  Load capacity – 5 kg;
  • Working area DShV – 3000x1800x1600 mm;

  • The number of pallets for laying is 2 pcs.;

  • The maximum dimensions of the pallet are 1200x1800 mm;

  • The minimum cycle time is 6 seconds.;

  • The maximum number of cycles per hour is 600;

  • X and Y axis transmission type: linear actuator LDB-80;

  • Z-axis transmission type: linear actuator LDB-65;

  • The maximum travel speed is 250 mm/sec;

  • The type of grip is pneumatic;

  • The rotation of the grip is 180 degrees;

  • The positioning accuracy is 0.05 mm by 300 mm;

  • The repeatability of positioning is 0.12 mm by 300 mm;

  • The discreteness of the displacement setting (the minimum displacement that can be set in the control program) is 0.001 mm;

  • CNC System – M-ROBO CNC 4X;

  • The management interface is an industrial computer running Windows;

  • Computer interface – USB;

  • Supported file formats are G-code, M-code (ISO);

  • Supply voltage – 220 V, 50 Hz;

  • The maximum power consumption is 4.0 kW;

  • Overall dimensions of the DShV – 3400x2100x3200 mm;

  • Weight – 420 kg.

The scope of delivery

1. RC-5 robotic arm;

2. A set of connecting wires;

3. A set of clamps for fixing;

4. Manual and operating data sheet.

RC-20 Robotic Arm

Technical specifications

  • Load capacity – 20 kg;

  • Working area DShV – 3000x1800x1600 mm;

  • The number of pallets for laying is 2 pcs.;

  • The maximum dimensions of the pallet are 1200x1800 mm;

  • The minimum cycle time is 12 seconds.;

  • The maximum number of cycles per hour is 300;

  • X and Y axis transmission type: linear actuator LDB-110;

  • Z-axis transmission type: linear actuator LDB-110;

  • The maximum travel speed is 250 mm/sec;

  • The type of grip is pneumatic;

  • The rotation of the grip is 180 degrees;

  • The positioning accuracy is 0.05 mm by 300 mm;

  • The repeatability of positioning is 0.12 mm by 300 mm;

  • The discreteness of the displacement setting (the minimum displacement that can be set in the control program) is 0.001 mm;

  • CNC System – M-ROBO CNC 4X;

  • The management interface is an industrial computer running Windows;

  • Computer interface – USB;

  • Supported file formats are G-code, M-code (ISO);

  • Supply voltage – 220 V, 50 Hz;

  • The maximum power consumption is 6.0 kW;

  • Overall dimensions of the DShV – 3600x2300x3300 mm;

  • Weight – 850 kg.

The scope of delivery

1. RC-20 robotic arm;

2. A set of connecting wires;

3. A set of clamps for fixing;

4. Manual and operating data sheet.
