Description
The rotary positioner is designed for programmable, high-precision positioning of the workpiece by angular displacement in the range = 360°. The positioner is used in robotic complexes or automated process control systems as an additional axis.
Advantages
1. High-speed processing of non-ferrous metals and their alloys
2. 360 degree rotation of the workpiece
3. Travel speed up to 15 m/min
4. Spindle with automatic tool change (optional)
5. High-precision servomotors
6. Precision guides and ball screw gears
7. Service area of less than 2 m2 on both sides
8. Ergonomic appearance
9. Intuitive interface in Russian
Overall dimensions

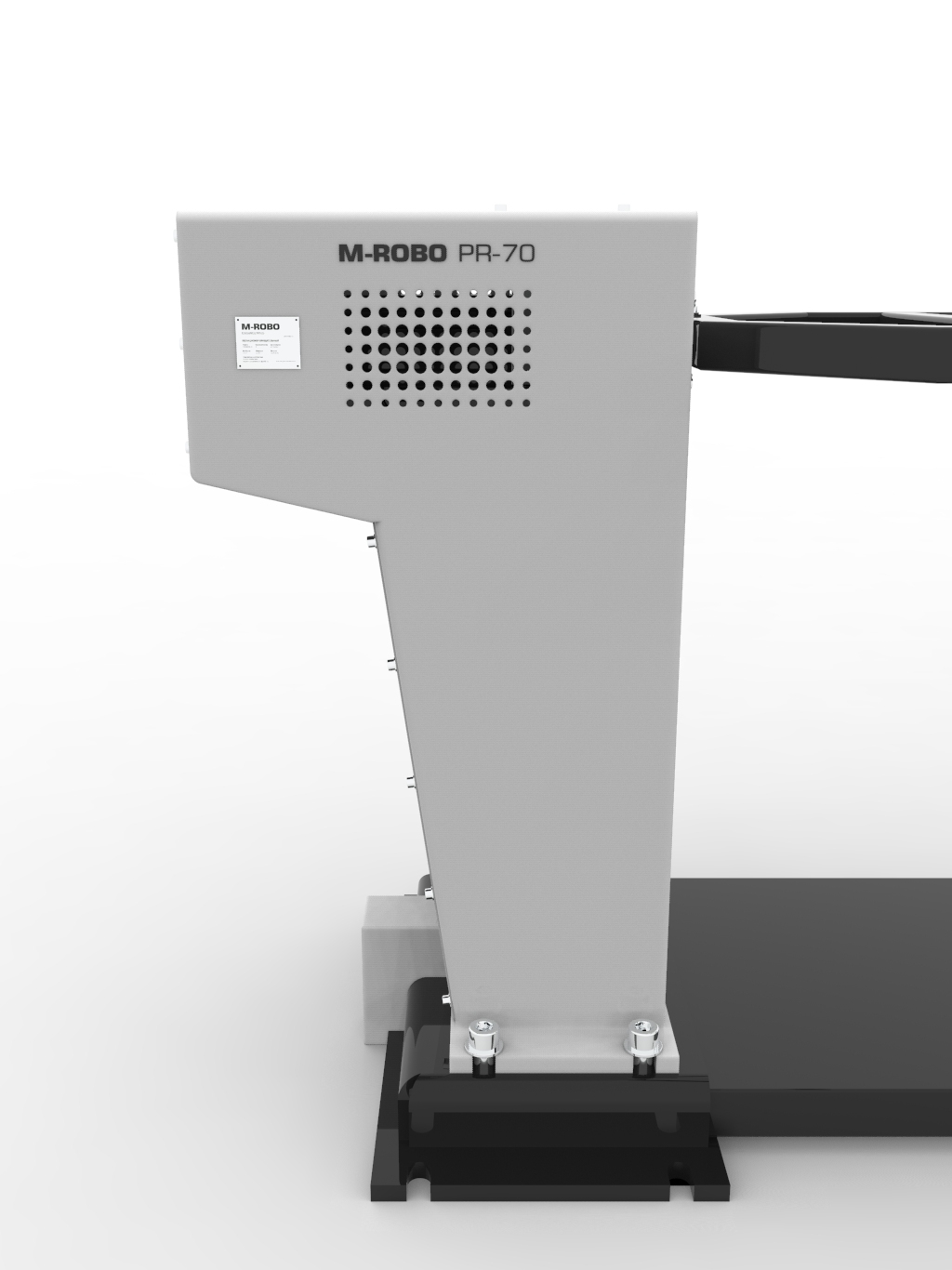

Rotary positioner PR-70
Technical specifications
- Load capacity – 5 kg;
- The number of bins is 1 (2) pcs.;
- The number of blanks in the hopper is 100 (200) pieces with maximum dimensions D=50 mm L =100 mm;
- The change time of the workpiece is 14 seconds;
- Type of transmission along the horizontal axis: linear electric drive LDB-110-1600;
- Transmission type along the vertical axis: linear electric drive LDB-80-1400;
- Hopper transmission type: linear electric drive LDB-80-600;
- The maximum travel speed is 250 mm/sec;
- The type of grip is pneumatic with parallel jaws;
- The rotation of the grip is 360 degrees;
- The positioning accuracy is 0.05 mm by 300 mm;
- The repeatability of positioning is 0.12 mm by 300 mm;
- The discreteness of the displacement setting (the minimum displacement that can be set in the control program) is 0.001 mm;
- CNC CONTROL 3X system;
- The management interface is an industrial computer running Windows;
- Computer interface – USB;
- Supported file formats are G-code, M-code (ISO);
- Supply voltage – 220 V, 50 Hz;
- The maximum power consumption is 3.0 kW;
- Overall dimensions of the DShV – 2100x1100x2100 mm;
- Weight – 180 kg.
The scope of delivery

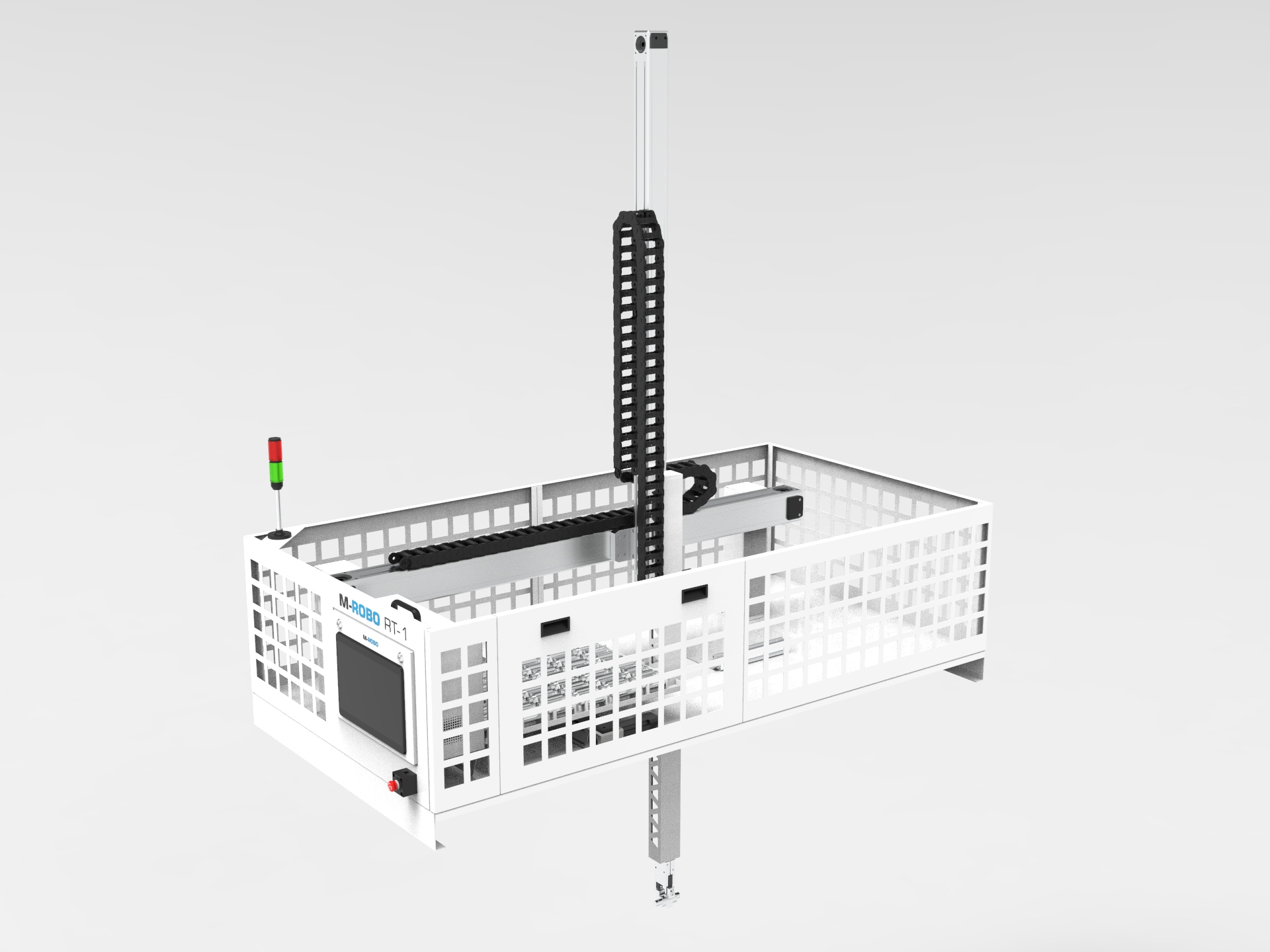

1. RT-1 manipulator robot;
2. A set of connecting wires;
3. A set of clamps for fixing;
4. Manual and operating data sheet.
Technical specifications
- Load capacity – 70 kg;
- Rotation angle – ±360°;
- The maximum rotation speed is 45 degrees/sec.;
- Type of electric drive – servo motor;
- Type of gearbox – wave;
- Angular backlash – less than 5 minutes;
- Zero position sensor – limit switch;
- Linear accuracy – 0.1 mm;
- Supply voltage – 220 V, 50 Hz;
- Power consumption – 1.2 kW;
- Overall dimensions LxWxH – 2660x400x730 mm;
- Weight – 185 kg.
The scope of delivery
1. Lead positioner;
2. Slave positioner;
3. The manual and the operation passport in Russian.
